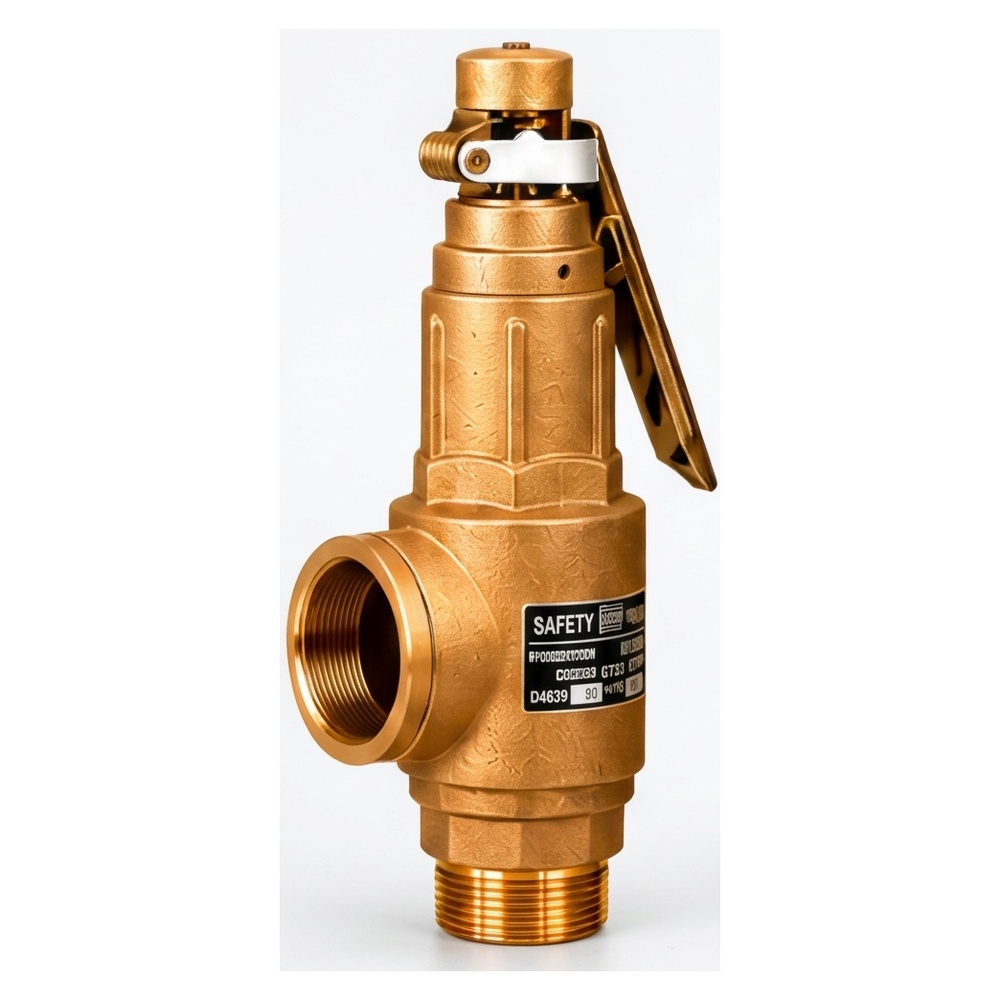

Safety Relief Valve CW617N (Steam & Industrial Applications)
$89.50$108.00Save 17%
In Stock

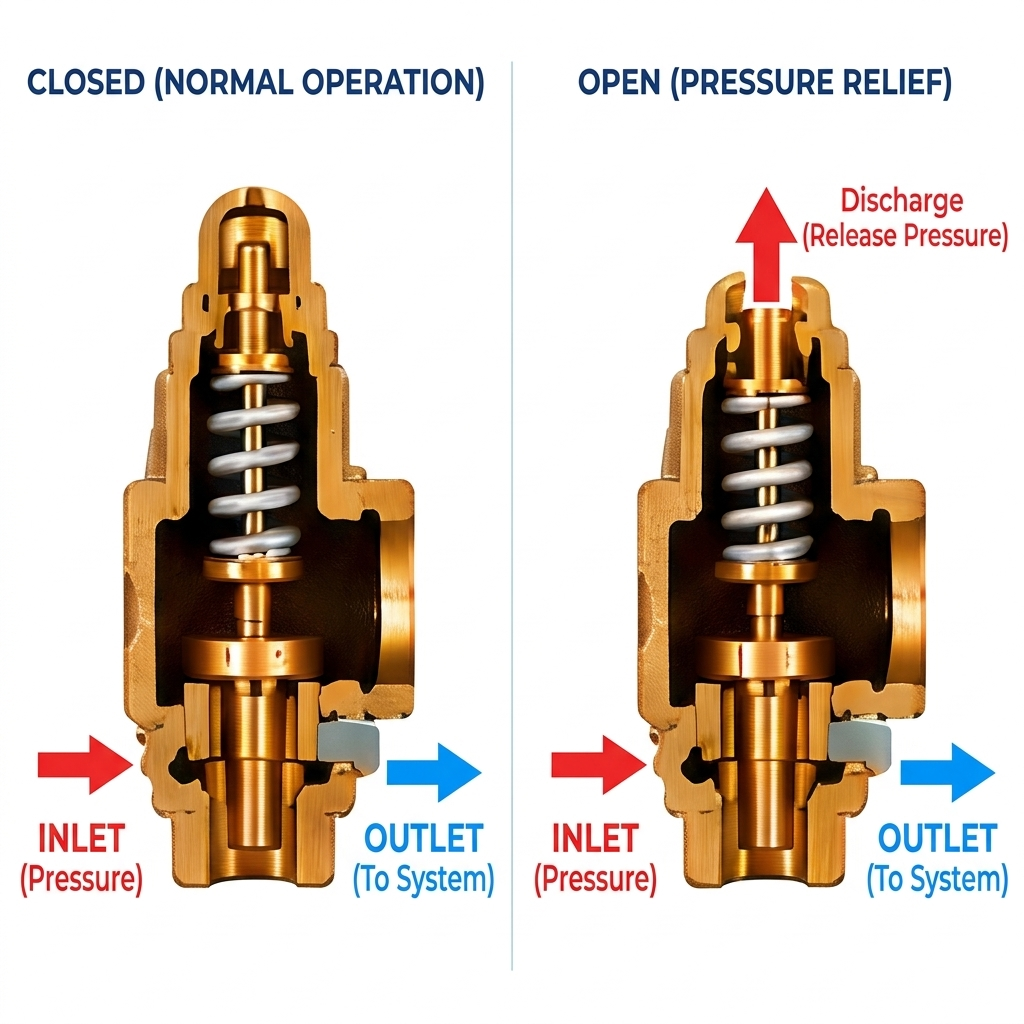

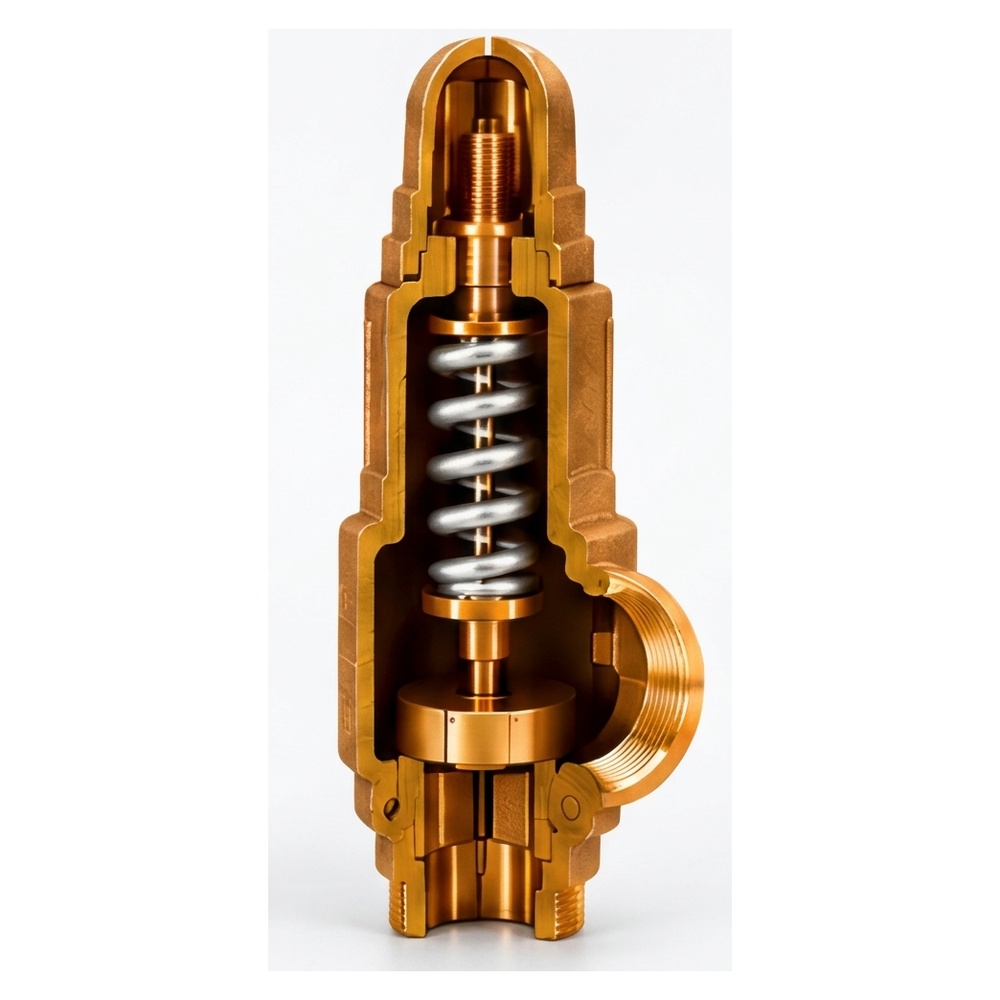

The CW617N safety relief valve is designed to protect steam and industrial systems by automatically releasing excess pressure. Built for reliable performance, durability, and long service life in demanding environments. Featuring premium bronze body construction, SS304 stainless steel spring and lever, and precision PTFE sealing.
3.85 lbs
30-day return policy on all parts
Same-day shipping on orders before 2PM EST
Specifications
| Application | Steam Systems, Boilers, Process Equipment, Industrial Plants |
| Material | Bronze (CW617N) / SS304 Spring & Lever |
| Connection Type | Threaded (NPT) |
| Pressure Rating | 362.6 psi (25 bar) |
| Temperature Range | 212 °F (100 °C) |
| Port Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" NPT |
| Flow Rate | 58.9 CFM (100 m³/h) |
| Sealing Material | PTFE |
| Warranty | 3 Years Factory Warranty |
| Mounting Orientation | Vertical |
| Model Number | CW617N |
